Mirror images to another registry
Estimated reading time: 5 minutesThis topic applies to Docker Enterprise.
The Docker Enterprise platform business, including products, customers, and employees, has been acquired by Mirantis, inc., effective 13-November-2019. For more information on the acquisition and how it may affect you and your business, refer to the Docker Enterprise Customer FAQ.
Docker Trusted Registry allows you to create mirroring policies for a repository. When an image gets pushed to a repository and meets the mirroring criteria, DTR automatically pushes it to a repository in a remote Docker Trusted or Hub registry.
This not only allows you to mirror images but also allows you to create image promotion pipelines that span multiple DTR deployments and datacenters.
In this example we will create an image mirroring policy such that:
- Developers iterate and push their builds to
dtr-example.com/dev/website&endash; the repository in the DTR deployment dedicated to development. - When the team creates a stable build, they make sure their image is tagged
with
-stable. - When a stable build is pushed to
dtr-example.com/dev/website, it will automatically be pushed toqa-example.com/qa/website, mirroring the image and promoting it to the next stage of development.
With this mirroring policy, the development team does not need access to the QA cluster, and the QA team does not need access to the development cluster.
You need to have permissions to push to the destination repository in order to set up the mirroring policy.
Configure your repository connection

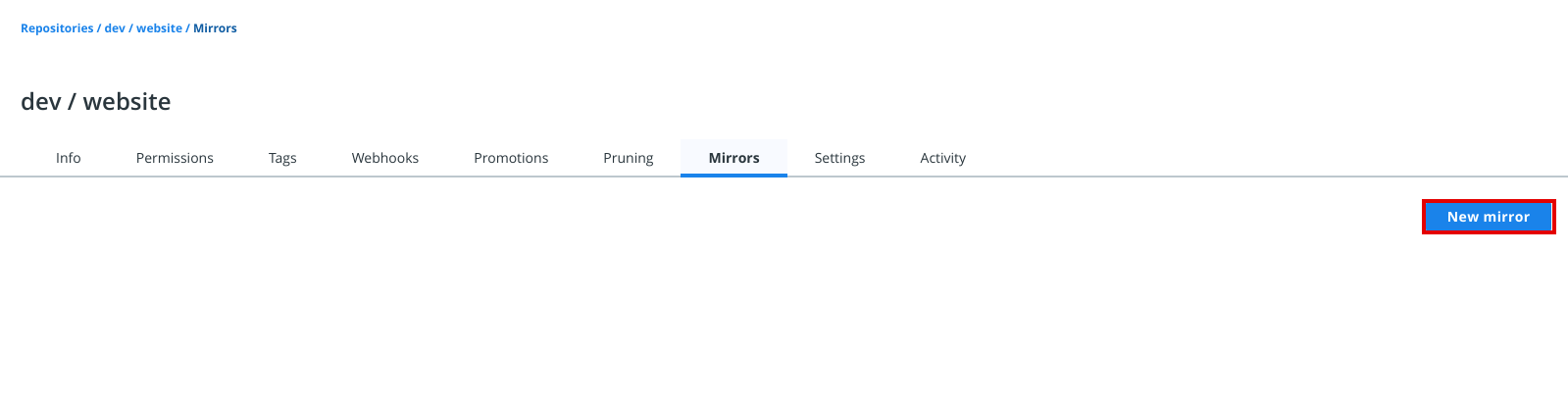

Once you have created the repository, navigate to the repository page on the web interface, and select the Mirrors tab.
Click New mirror to define where the image will be pushed if it meets the mirroring criteria.

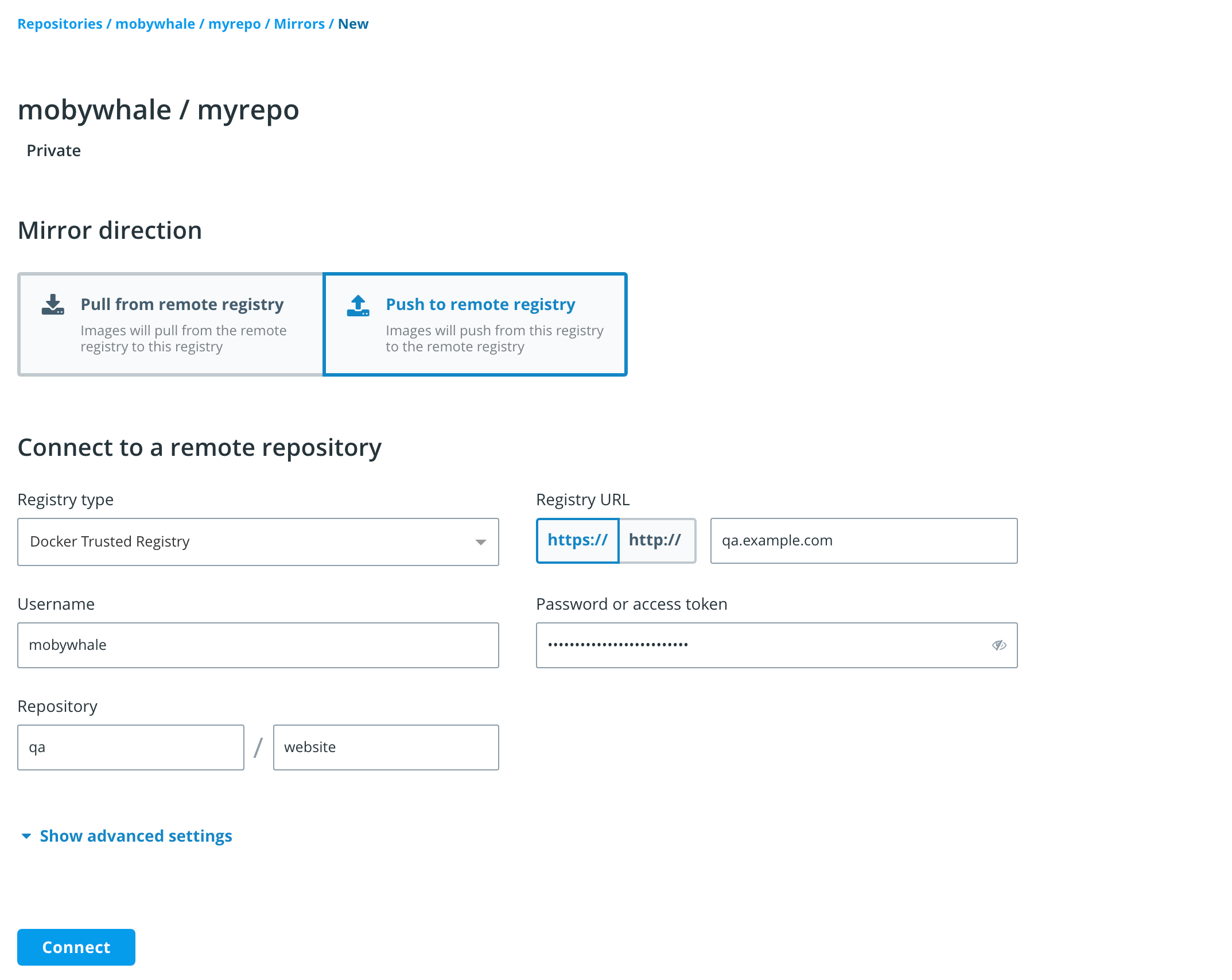

Under Mirror direction, choose Push to remote registry. Specify the following details:
| Field | Description |
|---|---|
| Registry type | You can choose between Docker Trusted Registry and Docker Hub. If you choose DTR, enter your DTR URL. Otherwise, Docker Hub defaults to https://index.docker.io. |
| Username and password or access token | Your credentials in the remote repository you wish to push to. To use an access token instead of your password, see authentication token. |
| Repository | Enter the namespace and the repository_name after the /. |
| Show advanced settings | Enter the TLS details for the remote repository or check Skip TLS verification. If the DTR remote repository is using self-signed TLS certificates or certificates signed by your own certificate authority, you also need to provide the public key certificate for that CA. You can retrieve the certificate by accessing https://<dtr-domain>/ca. “Remote certificate authority” is optional for a remote repository in Docker Hub. |
Note: Make sure the account you use for the integration has permissions to write to the remote repository.
Click Connect to test the integration.
In this example, the image gets pushed to the qa/example repository of a
DTR deployment available at qa-example.com using a service account
that was created just for mirroring images between repositories.
Next, set your push triggers. DTR allows you to set your mirroring policy based on the following image attributes:
| Name | Description | Example |
|---|---|---|
| Tag name | Whether the tag name equals, starts with, ends with, contains, is one of, or is not one of your specified string values | Copy image to remote repository if Tag name ends in stable |
| Component name | Whether the image has a given component and the component name equals, starts with, ends with, contains, is one of, or is not one of your specified string values | Copy image to remote repository if Component name starts with b |
| Vulnerabilities | Whether the image has vulnerabilities – critical, major, minor, or all – and your selected vulnerability filter is greater than or equals, greater than, equals, not equals, less than or equals, or less than your specified number | Copy image to remote repository if Critical vulnerabilities = 3 |
| License | Whether the image uses an intellectual property license and is one of or not one of your specified words | Copy image to remote repository if License name = docker |
You can choose to keep the image tag, or transform the tag into something more meaningful in the remote registry by using a tag template.
In this example, if an image in the dev/website repository is tagged with
a word that ends in “stable”, DTR will automatically push that image to
the DTR deployment available at qa-example.com. The image is pushed to the
qa/example repository and is tagged with the timestamp of when the image
was promoted.
Everything is set up! Once the development team pushes an image that complies
with the policy, it automatically gets promoted to qa/example in the remote trusted registry at qa-example.com.
Metadata persistence
When an image is pushed to another registry using a mirroring policy, scanning and signing data is not persisted in the destination repository.
If you have scanning enabled for the destination repository, DTR is going to scan the image pushed. If you want the image to be signed, you need to do it manually.
