Mirror images from another registry
Estimated reading time: 4 minutesThis topic applies to Docker Enterprise.
The Docker Enterprise platform business, including products, customers, and employees, has been acquired by Mirantis, inc., effective 13-November-2019. For more information on the acquisition and how it may affect you and your business, refer to the Docker Enterprise Customer FAQ.
Docker Trusted Registry allows you to set up a mirror of a repository by constantly polling it and pulling new image tags as they are pushed. This ensures your images are replicated across different registries for high availability. It also makes it easy to create a development pipeline that allows different users access to a certain image without giving them access to everything in the remote registry.
To mirror a repository, start by creating a repository in the DTR deployment that will serve as your mirror. Previously, you were only able to set up pull mirroring from the API. Starting in DTR 2.6, you can also mirror and pull from a remote DTR or Docker Hub repository.
Pull mirroring on the web interface
To get started, navigate to https://<dtr-url> and log in with your UCP credentials.
Select Repositories on the left navigation pane, and then click on the name of the repository that you want to view. Note that you will have to click on the repository name following the / after the specific namespace for your repository.

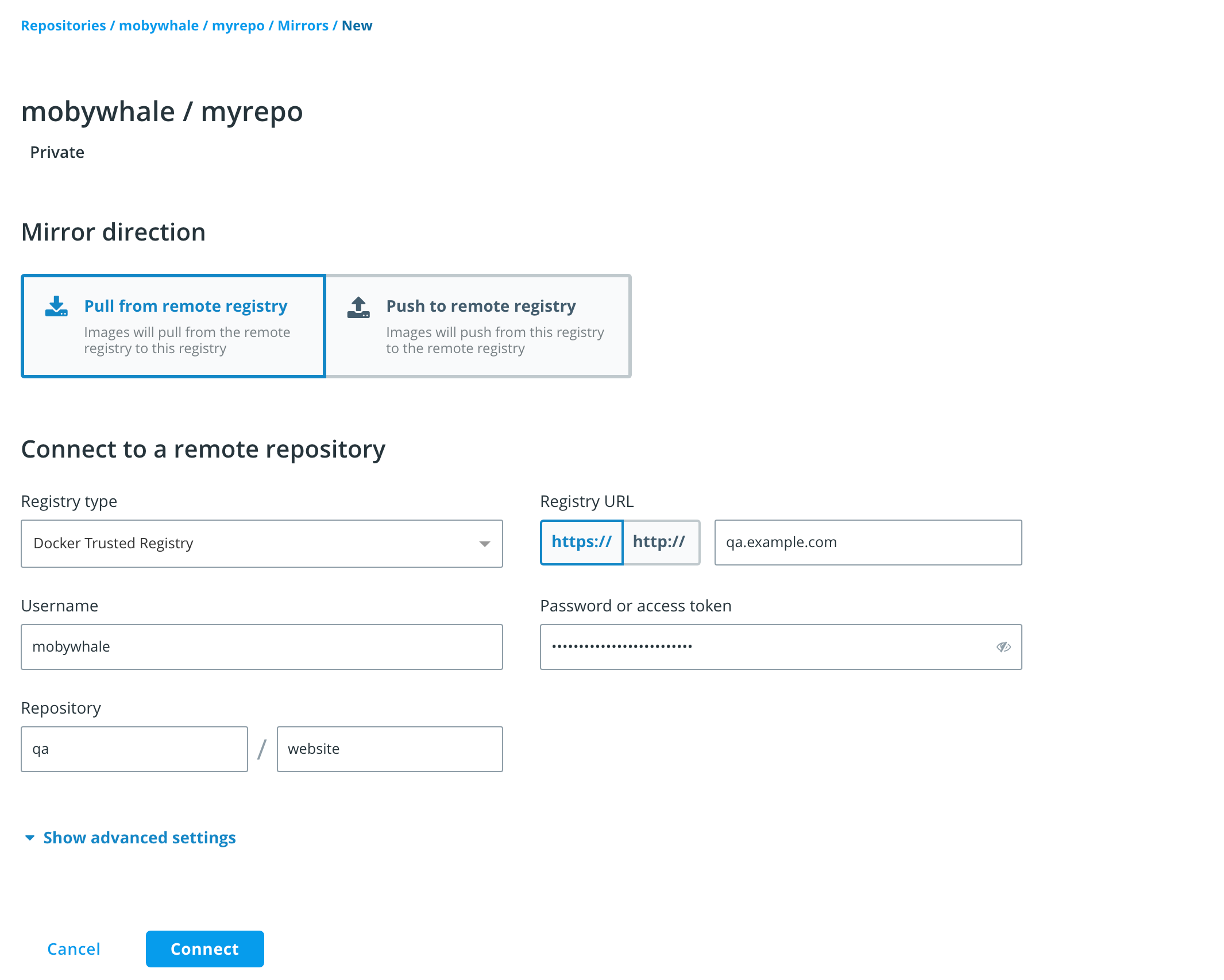

Next, select the Mirrors tab and click New mirror. On the New mirror page, choose Pull from remote registry.
Specify the following details:
| Field | Description |
|---|---|
| Registry type | You can choose between Docker Trusted Registry and Docker Hub. If you choose DTR, enter your DTR URL. Otherwise, Docker Hub defaults to https://index.docker.io. |
| Username and password or access token | Your credentials in the remote repository you wish to poll from. To use an access token instead of your password, see authentication token. |
| Repository | Enter the namespace and the repository_name after the /. |
| Show advanced settings | Enter the TLS details for the remote repository or check Skip TLS verification. If the DTR remote repository is using self-signed certificates or certificates signed by your own certificate authority, you also need to provide the public key certificate for that CA. You can retrieve the certificate by accessing https://<dtr-domain>/ca. “Remote certificate authority” is optional for a remote repository in Docker Hub. |
After you have filled out the details, click Connect to test the integration.
Once you have successfully connected to the remote repository, new buttons appear:
- Click Save to mirror future tag, or;
- To mirror all existing and future tags, click Save & Apply instead.
Pull mirroring on the API
There are a few different ways to send your DTR API requests. To explore the different API resources and endpoints from the web interface, click API on the bottom left navigation pane.
Search for the endpoint:
POST /api/v0/repositories/{namespace}/{reponame}/pollMirroringPolicies
Click Try it out and enter your HTTP request details. namespace and reponame refer
to the repository that will be poll mirrored. The boolean field, initialEvaluation, corresponds to Save when set to false and will only mirror images created after your API request. Setting it to true corresponds to Save & Apply which means all tags in the remote repository will be evaluated and mirrored. The other body parameters correspond to the relevant remote repository details that you can see on the DTR web interface. As a best practice, use a service account just for this purpose. Instead of providing the password for that account, you should pass an
authentication token.
If the DTR remote repository is using self-signed certificates or
certificates signed by your own certificate authority, you also need to provide
the public key certificate for that CA.
You can get it by accessing https://<dtr-domain>/ca. The remoteCA field is optional for mirroring a Docker Hub repository.
Click Execute. On success, the API returns an HTTP 201 response.
Review the poll mirror job log
Once configured, the system polls for changes in the remote repository and runs the poll_mirror job every 30 minutes. On success, the system will pull in new images and mirror them in your local repository. Starting in DTR 2.6, you can filter for poll_mirror jobs to review when it was last ran. To manually trigger the job and force pull mirroring, use the POST /api/v0/jobs API endpoint and specify poll_mirror as your action.
curl -X POST "https:/<dtr-url>/api/v0/jobs" -H "accept: application/json" -H "content-type: application/json" -d "{ \"action\": \"poll_mirror\"}"
See Manage Jobs to learn more about job management within DTR.
